2003-2017 Victory Cruisers Ultimate Ride Kit (Black Handlebar Inflation Switch)

Write a review

2003-2017 Victory Cruisers Ultimate Ride Kit (Black Handlebar Inflation Switch)

Write a review
Regular price $1,263.99
/

  • Rigorously Tested

  • Easy Installation

  • Designed For Motorcycles

  • In stock, ready to ship
  • Inventory on the way

PRODUCT FEATURES

  • Black FOX® shock absorber
  • Goodyear® air spring sleeves
  • ViAIR high output compressor w/application-specific bracket
  • 6061-T6 billet aluminum construction
  • Black handlebar-mounted inflation switch
  • Even fully deflated, fender won’t touch tire
  • Made & tested in USA

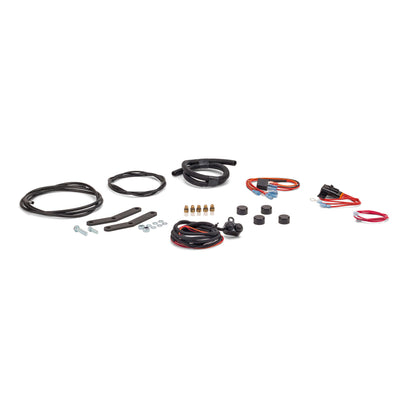

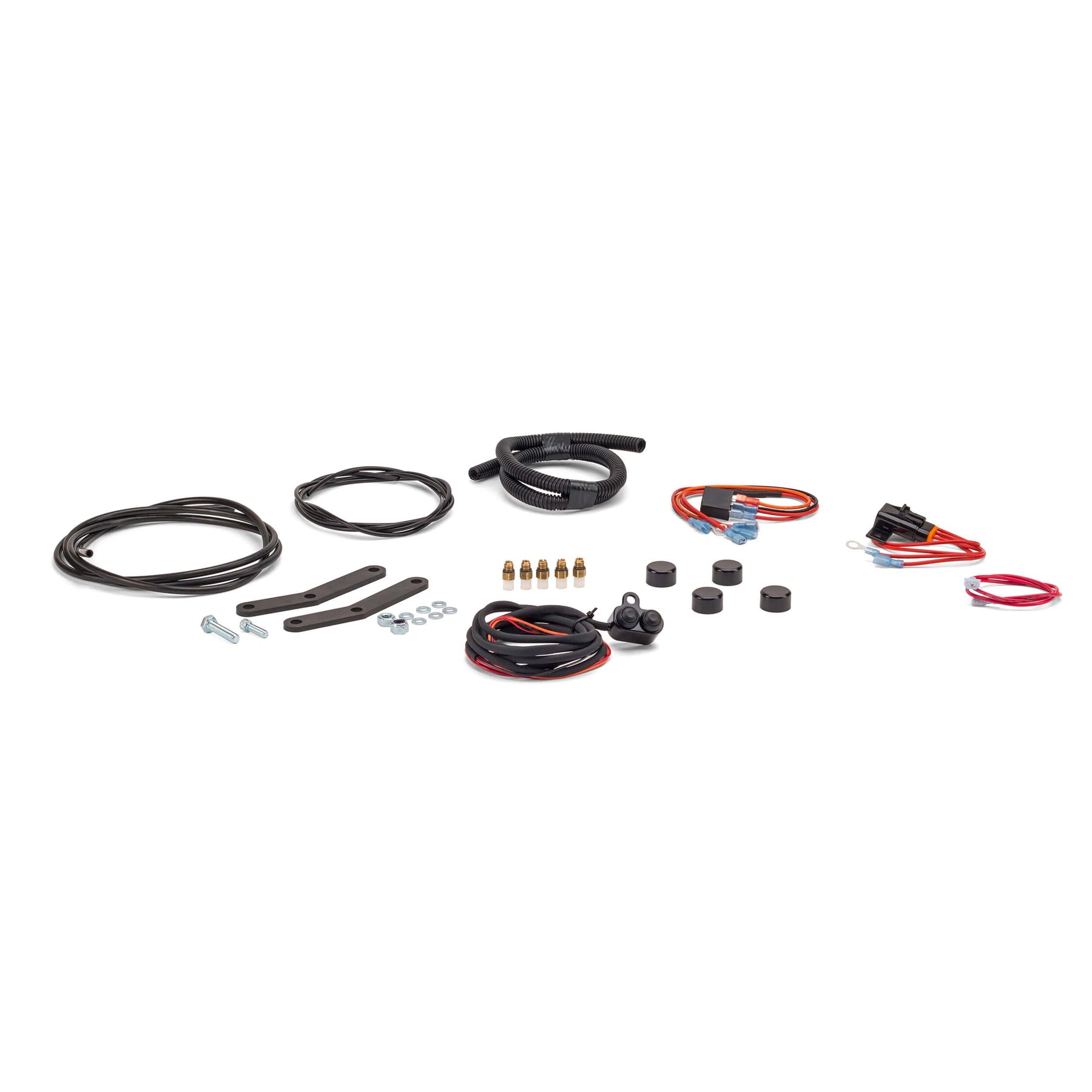

INCLUDES

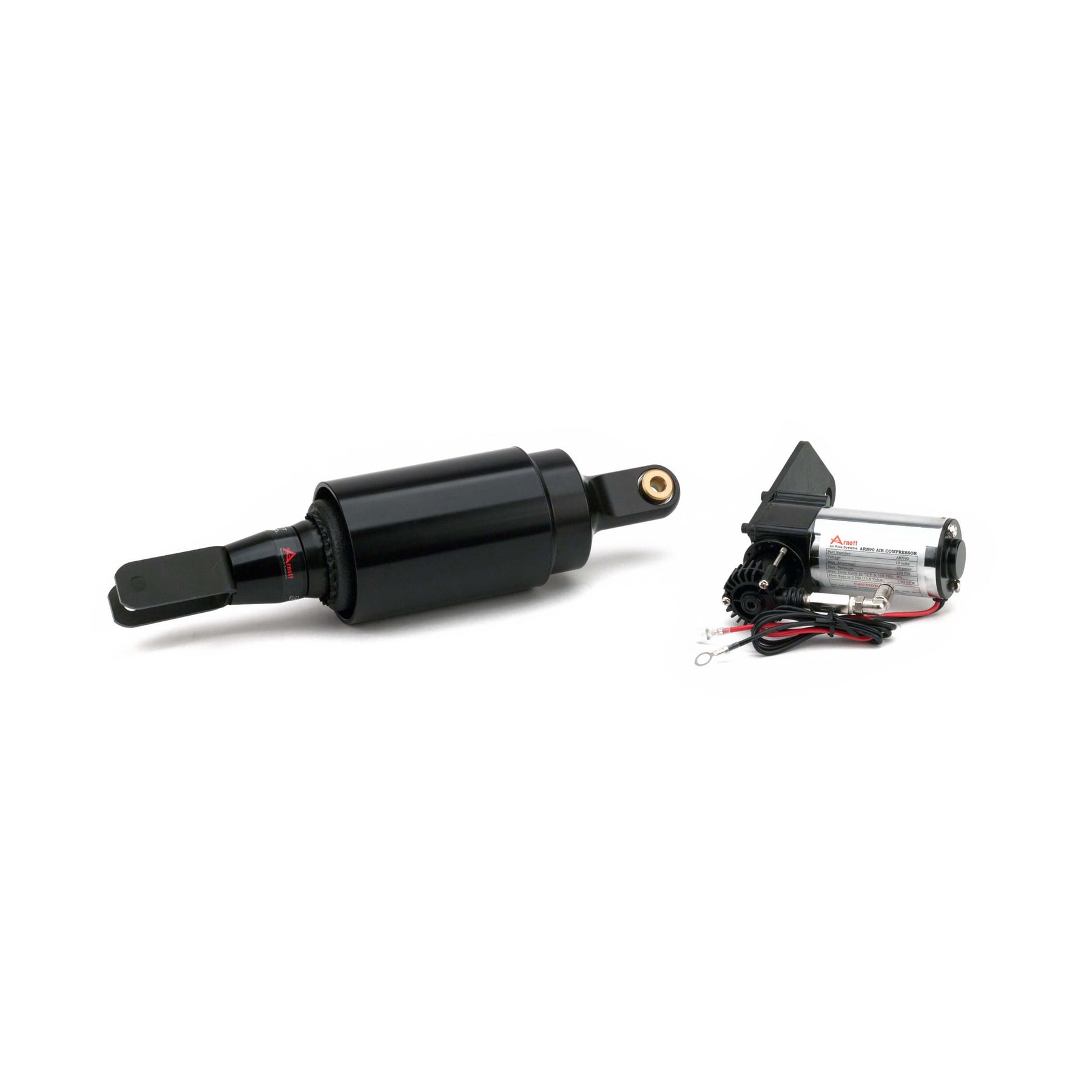

  • 1 black shock absorber
  • ViAIR compressor w/application-specific mounting bracket

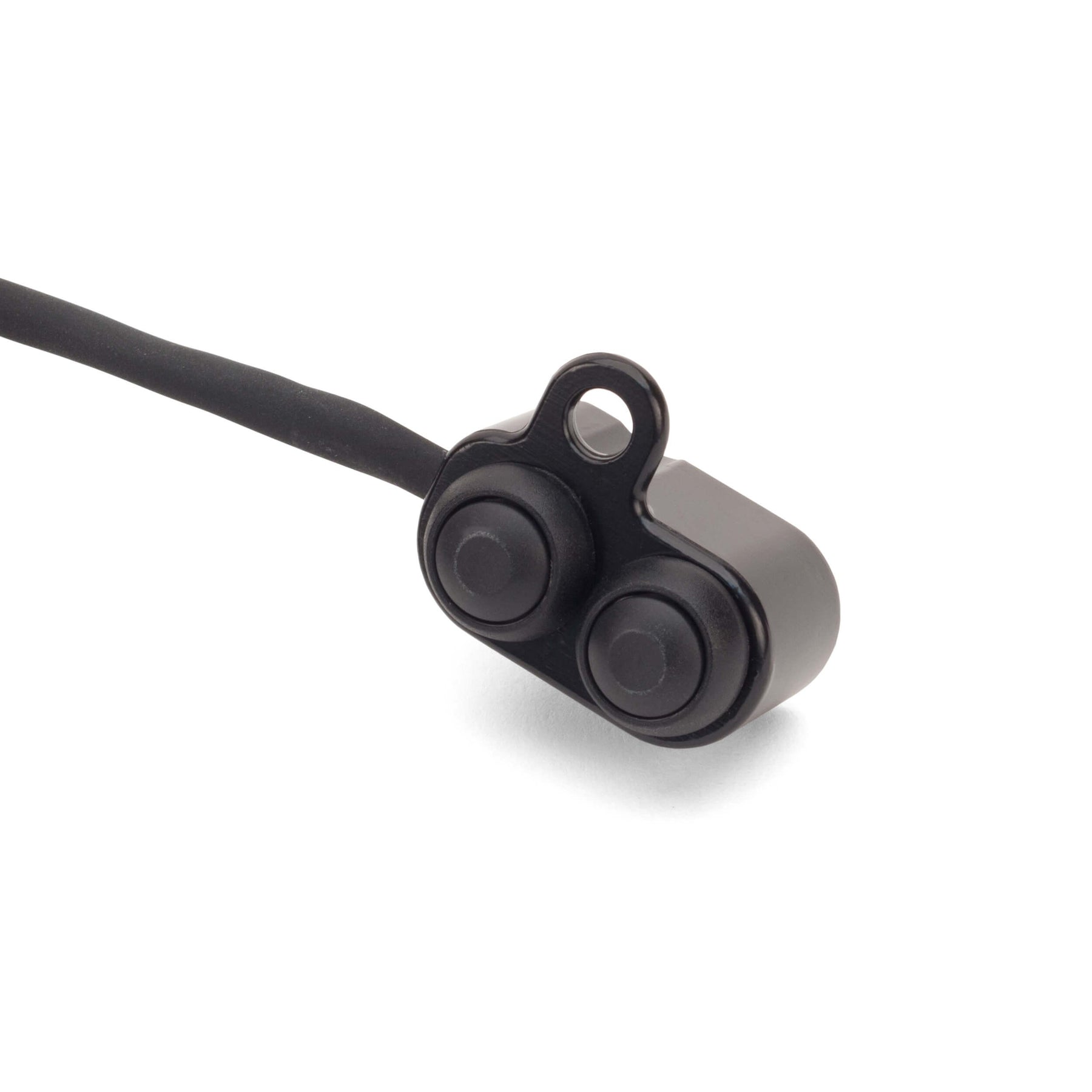

  • Black handlebar-mounted inflation switch
  • Air distribution valve w/air speed control muffler
  • Fused wiring harness & relay assembly
  • All necessary mounting hardware
  • Nylon air line tubing
  • Cable ties
  • Detailed installation manual

Arnott’s new adjustable Ultimate Ride Air Suspension Kit for Victory® Cruisers has been custom designed to replace the low-pressure OE air over oil shock that is subject to failure and cannot be adjusted on-demand. Arnott’s patents-pending kit offers TruAIR® Technology with a rugged Goodyear multi-ply air spring sleeve which is coupled with a custom FOX® nitrogen-charged, monotube shock absorber. Arnott’s Air Shock provides the rider with superior control, ride comfort, and much greater height adjustability.

Arnott pairs your shock with a small but powerful compressor, application-specific mounting bracket, and air distribution valve block which includes a muffler to control how fast air is released. Each kit includes everything you need for a fast and flawless installation including an installation manual, fused wiring harness, and relay assembly, handlebar-mounted inflation switch, all necessary tubing, wiring, cable ties, fittings, and mounting accessories. Each shock is custom-crafted and rigorously tested in Arnott’s Florida manufacturing facility and is backed by Arnott’s Limited Lifetime Warranty.

INSTALLATION RESOURCES

PDF Installation Manual

Installation Manual (w/Google Translate)

Ride Series: Ultimate Ride

Shock Color: Black

Optional Rebound Adjustment: No

Size: Standard

Minimum Length: 12.39"

Maximum Length: 14.00"

Travel Length: 1.61"

Air Spring: Multi-Ply Goodyear

Shock Damper: FOX

Shock Construction: All CNC Billet Aluminum Components

Ride Comparison: Comfortable/Luxurious

Reduces Painful Bottoming: Yes

Bottoming Bumper: Urethane

Color Coordinated Bolt Covers: Yes

Adjustable Deflation Speed: Yes

Air Distribution Manifold w/Integrated Release Valve: Yes

30-Day Satisfaction Guarantee: Yes

Arnott® offers a Limited Lifetime Warranty for North American customers on all Air Springs, new and remanufactured Strut and Shock Assemblies, Coil Spring Conversion Kits, Air Suspension Compressors and Valve Blocks. Orders from outside North America, including the European Union, come with a Limited Two-Year Warranty. Arnott’s warranty on dryers and accessories is 1-Year. Arnott’s warranty is nontransferable. If a part is defective, Arnott will either replace or repair that part, as long as it is within the warranty period and proof of purchase is provided. Arnott offers a 30-Day Warranty for parts used in commercial vehicles. Improper use or installation is not a manufacturer’s defect.

For complete Warranty details and limitations, please click here.
