2009-2022 Harley-Davidson Trikes Ultimate Ride Kit (Black Handlebar Inflation Switch)

1 review

2009-2022 Harley-Davidson Trikes Ultimate Ride Kit (Black Handlebar Inflation Switch)

1 review
Regular price $1,579.00
/

Verify fitment with your motorcycle


(Change motorcycle)
  • Rigorously Tested

  • Easy Installation

  • Designed For Motorcycles


PRODUCT FEATURES

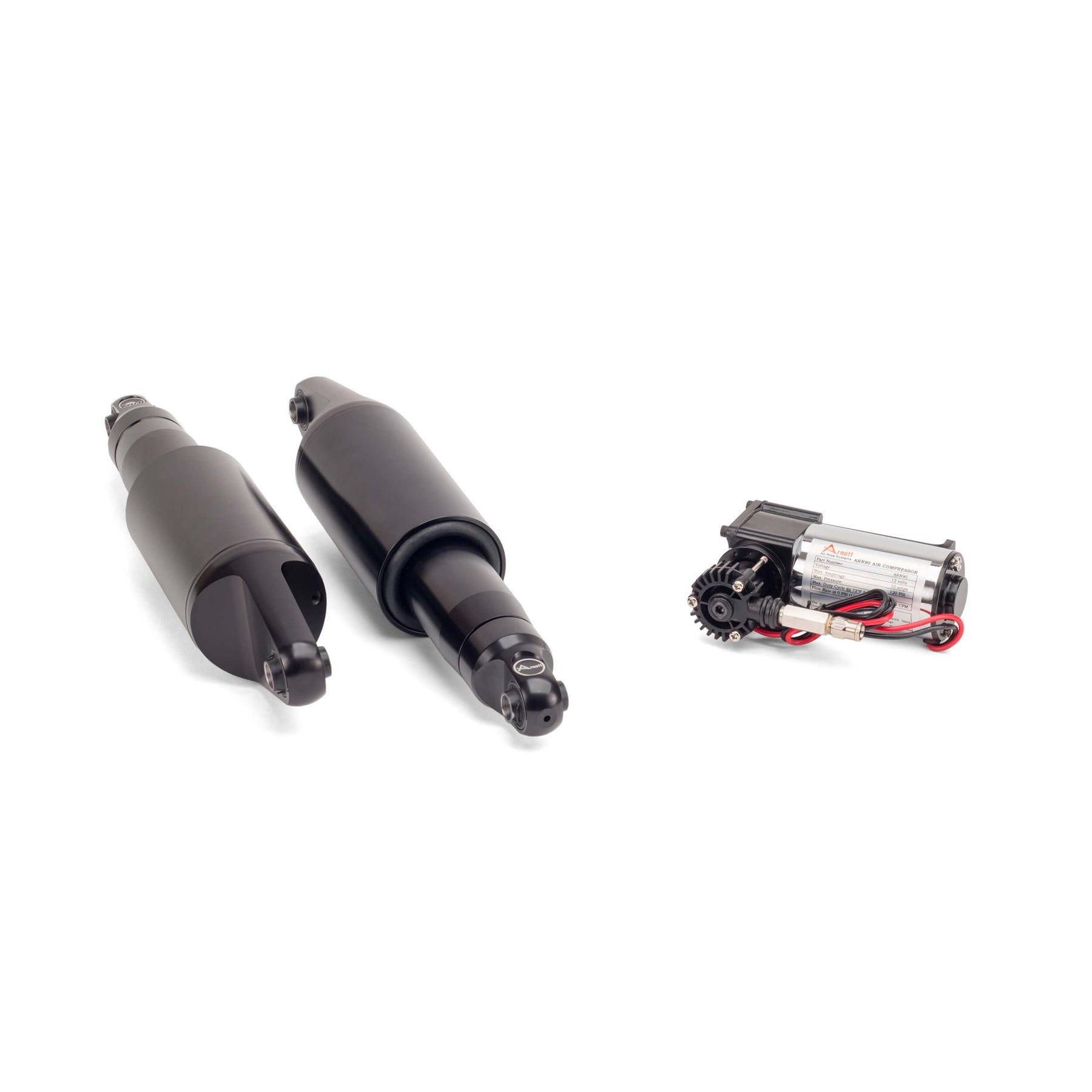

  • 2 black FOX® shock absorbers
  • Goodyear® air spring sleeves
  • ViAIR high output compressor w/application-specific bracket
  • 6061-T6 billet aluminum construction
  • Black handlebar-mounted inflation switch
  • Engineered for Harley-Davidson®Trikes
  • Even fully deflated, fender won’t touch tire
  • Made & tested in USA

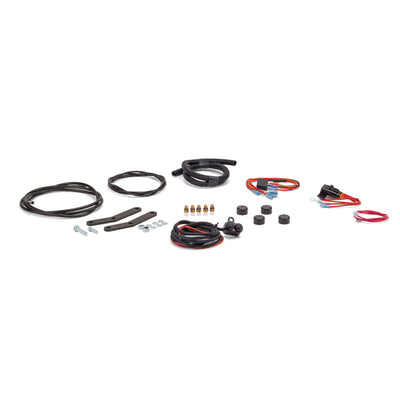

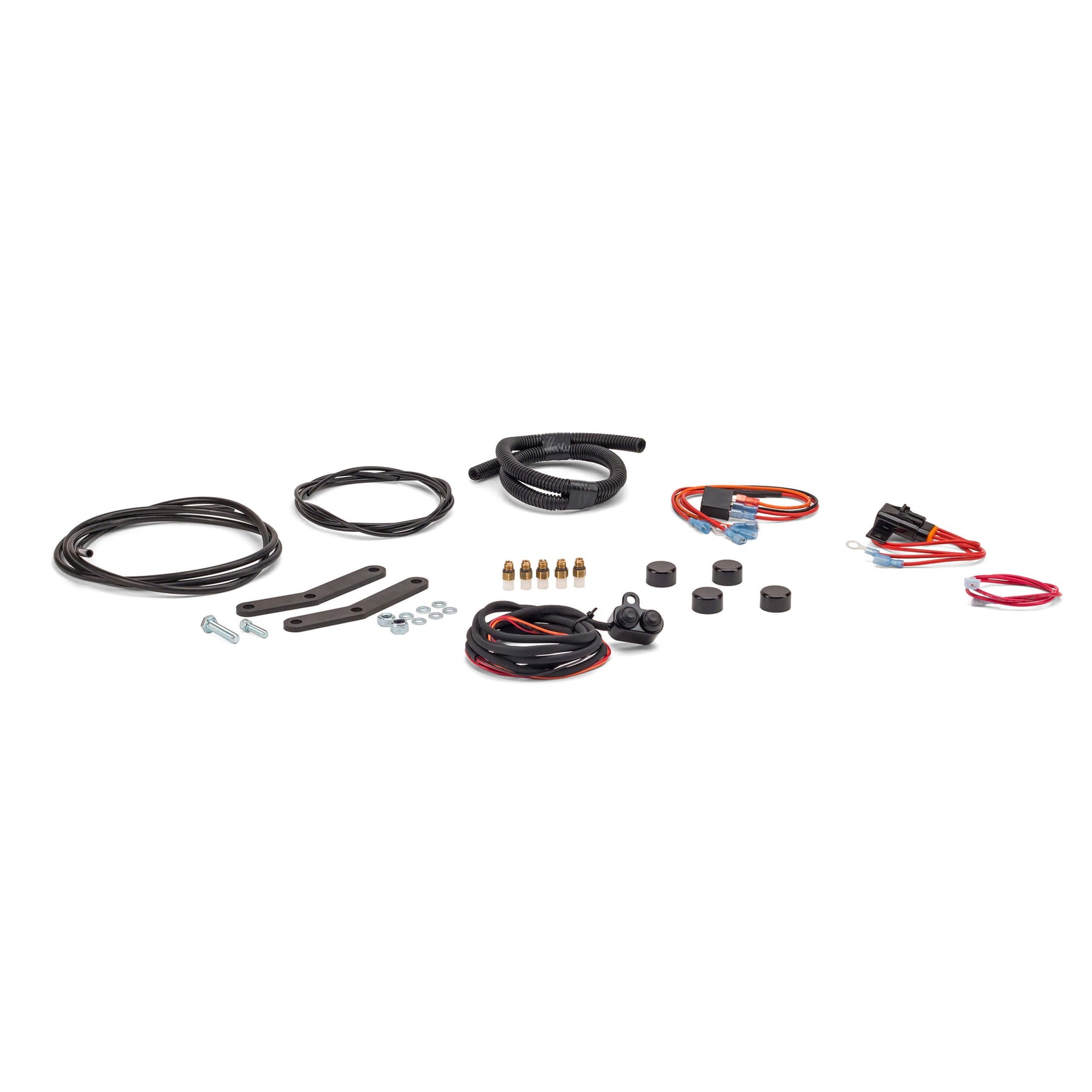

INCLUDES

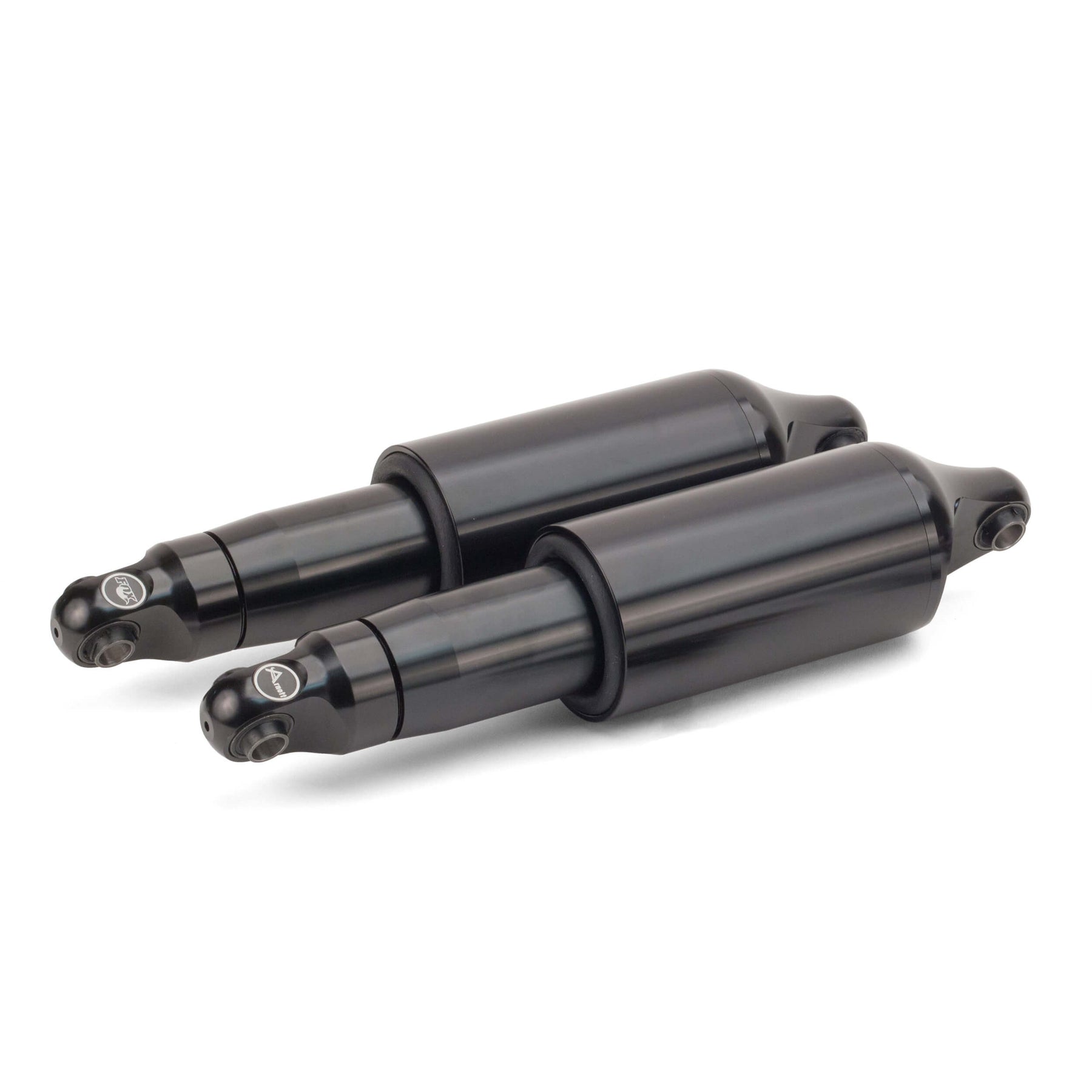

  • 2 black FOX shock absorbers w/multi-ply Goodyear air spring sleeves
  • ViAIR high output compressor w/application-specific bracket

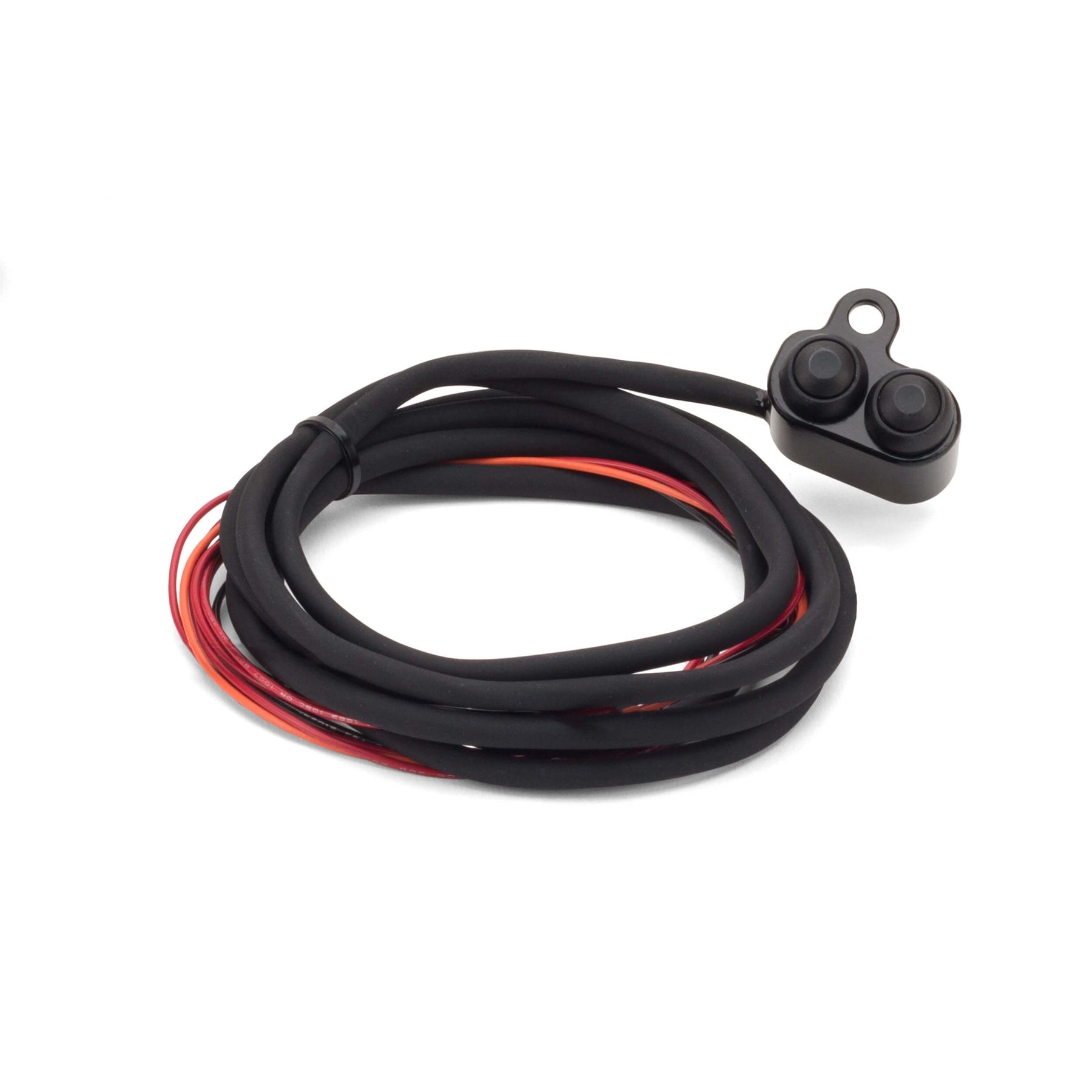

  • Black handlebar-mounted inflation switch
  • Air distribution valve w/air speed control muffler
  • Fused wiring harness & relay assembly
  • All necessary mounting hardware
  • Nylon air line tubing
  • Cable ties
  • Detailed installation manual

Arnott’s new Ultimate Ride Series Air Suspension Kit for Harley-Davidson® Tri Glide® and Freewheeler® has been custom designed to replace the OE shocks on these heavy 1,200 lb. three-wheelers. Arnott’s patents-pending kit features TruAIR® Technology with rugged Goodyear multi-ply air spring sleeves which are coupled with FOX® nitrogen-charged shock absorbers. Arnott’s Air Shock Kit provides the rider, and their passenger, with superior ride comfort regardless of the road ahead or any added weight on the Tri Glide and Freewheeler. Plus, Arnott’s extended shock length (14” vs. 13”) increases the ground clearance for your exhaust tips. This helps eliminate your pipes from scraping on the pavement which often occurs with stock shocks.

Arnott pairs your shock with a powerful compressor, application-specific mounting bracket, and air distribution valve block which includes a muffler to control how fast air is released. Each kit includes everything you need for a fast and flawless installation including Installation Manual, fused wiring harness and relay assembly, black handlebar-mounted inflation switch, all necessary tubing, wiring, cable ties, fittings, and mounting accessories. Each shock kit is custom-crafted and rigorously tested in Arnott’s Florida manufacturing facility and is backed by Arnott’s Limited Lifetime Warranty.

INSTALLATION RESOURCES

PDF Installation Manual

Installation Manual (w/Google Translate)

Ride Series: Ultimate Ride

Shock Color: Black

Optional Rebound Adjustment: No

Size: Tall

Minimum Length: 10.70"

Maximum Length: 14.00"

Travel Length: 3.30"

Air Spring: Multi-Ply Goodyear

Shock Damper: FOX

Shock Construction: All CNC Billet Aluminum Components

Ride Comparison: Comfortable/Luxurious

Reduces Painful Bottoming: Yes

Bottoming Bumper: Urethane

Color Coordinated Bolt Covers: Yes

Adjustable Deflation Speed: Yes

Air Distribution Manifold w/Integrated Release Valve: Yes

30-Day Satisfaction Guarantee: Yes

Arnott® offers a Limited Lifetime Warranty for North American customers on all Air Springs, new and remanufactured Strut and Shock Assemblies, Coil Spring Conversion Kits, Air Suspension Compressors and Valve Blocks. Orders from outside North America, including the European Union, come with a Limited Two-Year Warranty. Arnott’s warranty on dryers and accessories is 1-Year. Arnott’s warranty is nontransferable. If a part is defective, Arnott will either replace or repair that part, as long as it is within the warranty period and proof of purchase is provided. Arnott offers a 30-Day Warranty for parts used in commercial vehicles. Improper use or installation is not a manufacturer’s defect.

For complete Warranty details and limitations, please click here.
